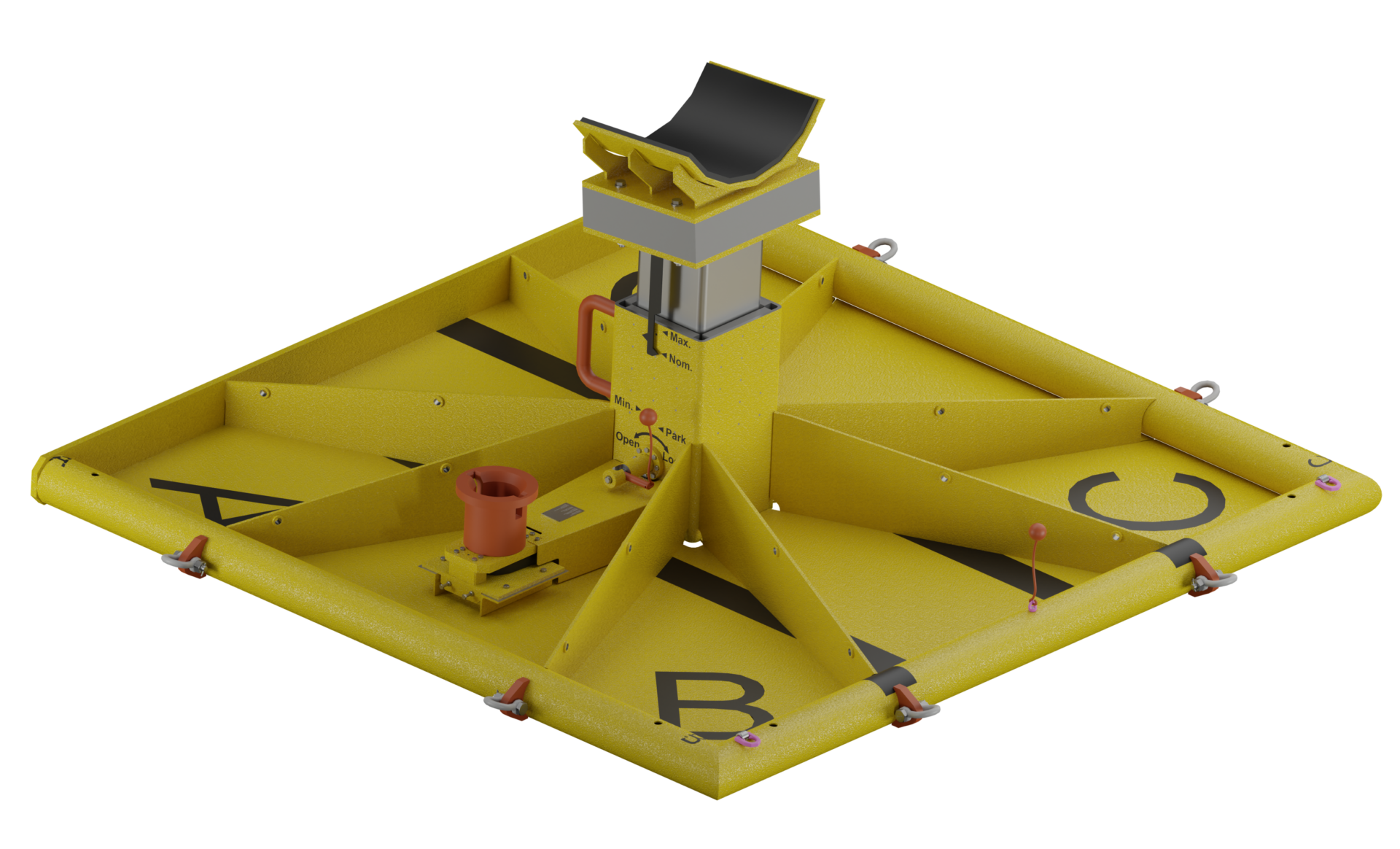

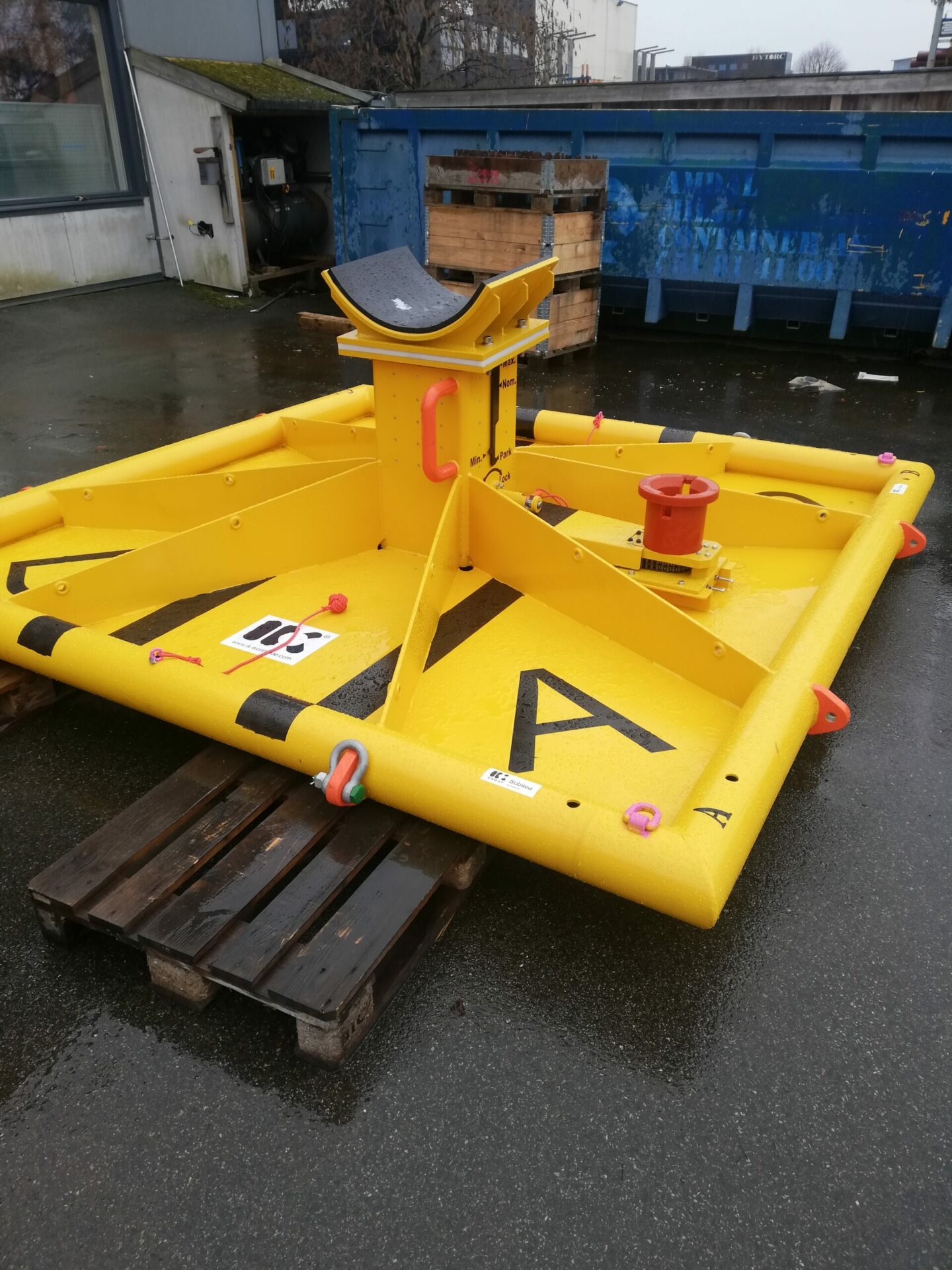

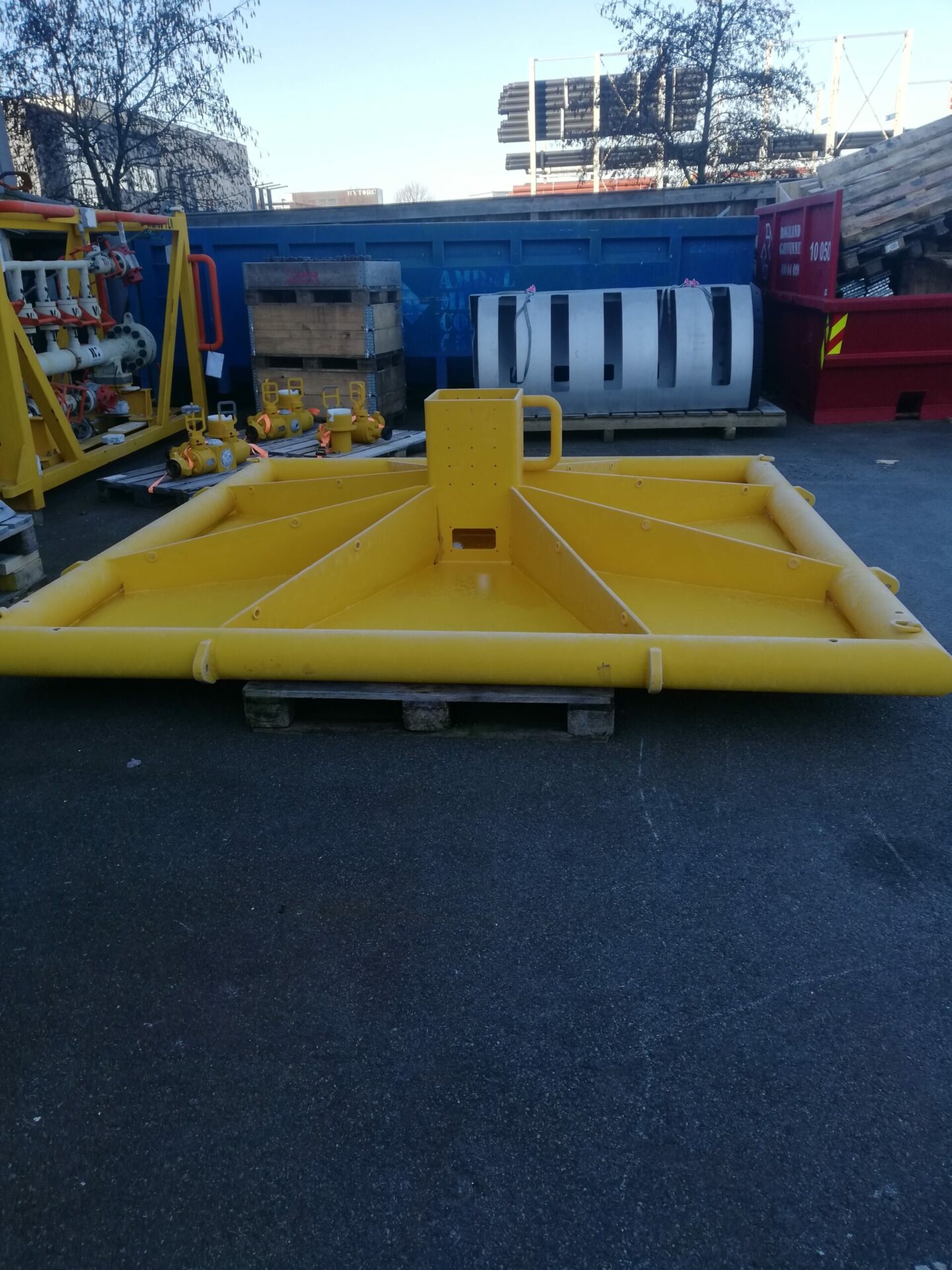

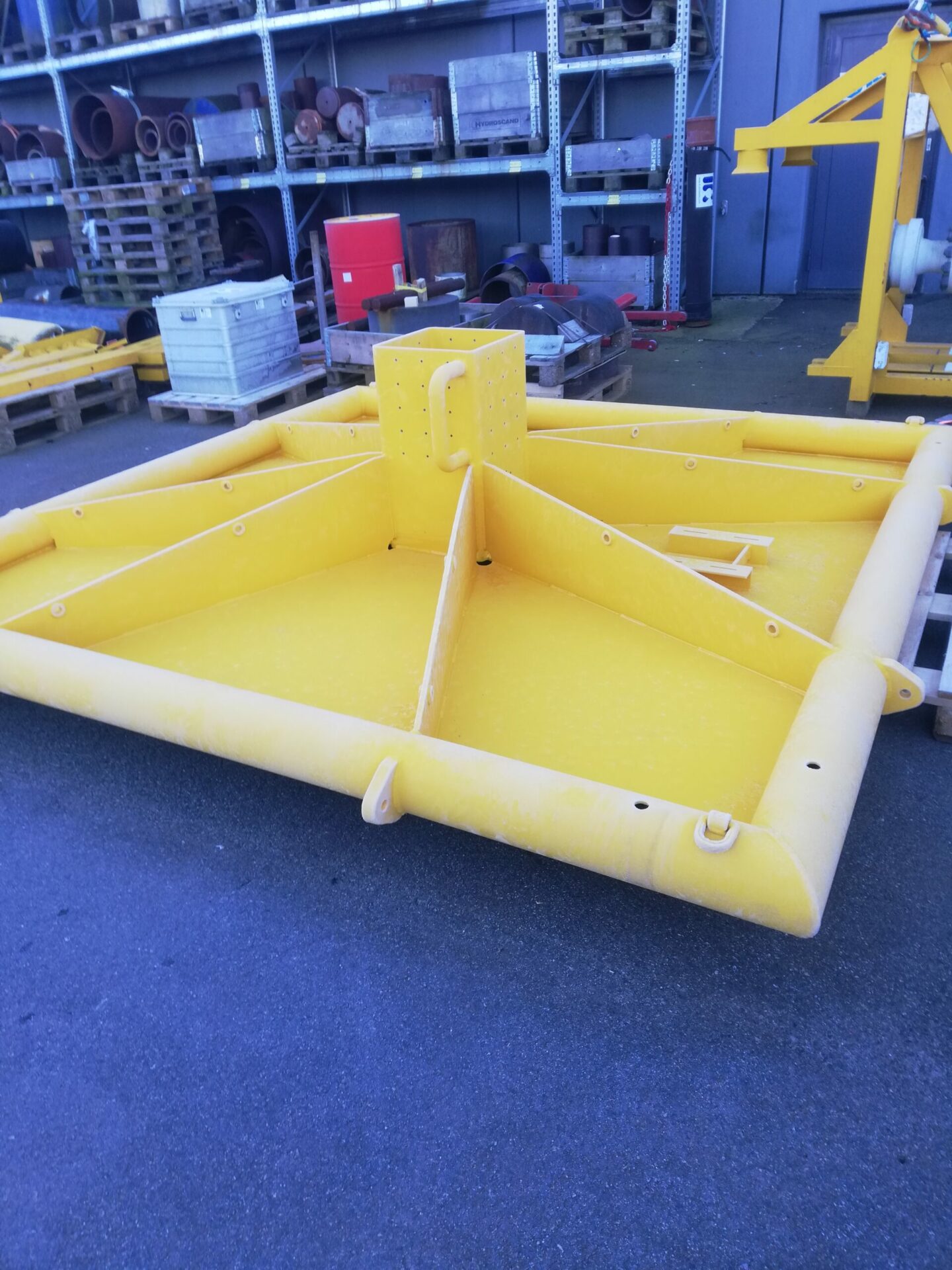

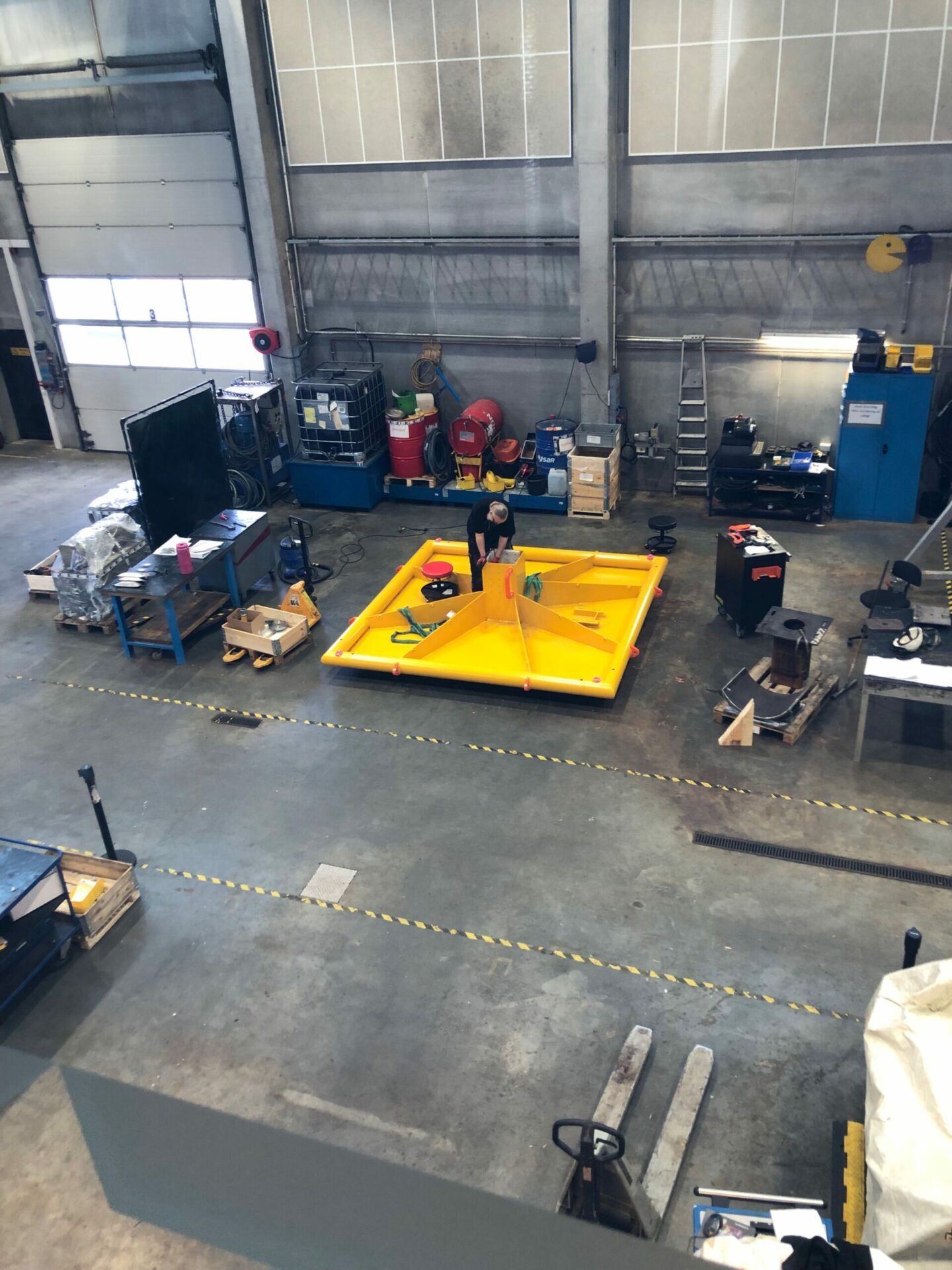

Telescopic J-tube Support Frame
IK Subsea delivered a retrofit J-tube support frame. The tool worked as a single leg telescopic support, placed under the end of the J-tube between the flange and the bell-mouth.
The telescopic J-tube support frame had a tray supporting the bottom-side of the J-tube at an approximate angle of 120 degrees.
The tool gives 25 tons of vertical support for the J-tube and it could also accommodate for a 5 degree angle between the J-tube and the seabed.
Scope of work for IK Engineering
- Design of telescopic J-tube support frame

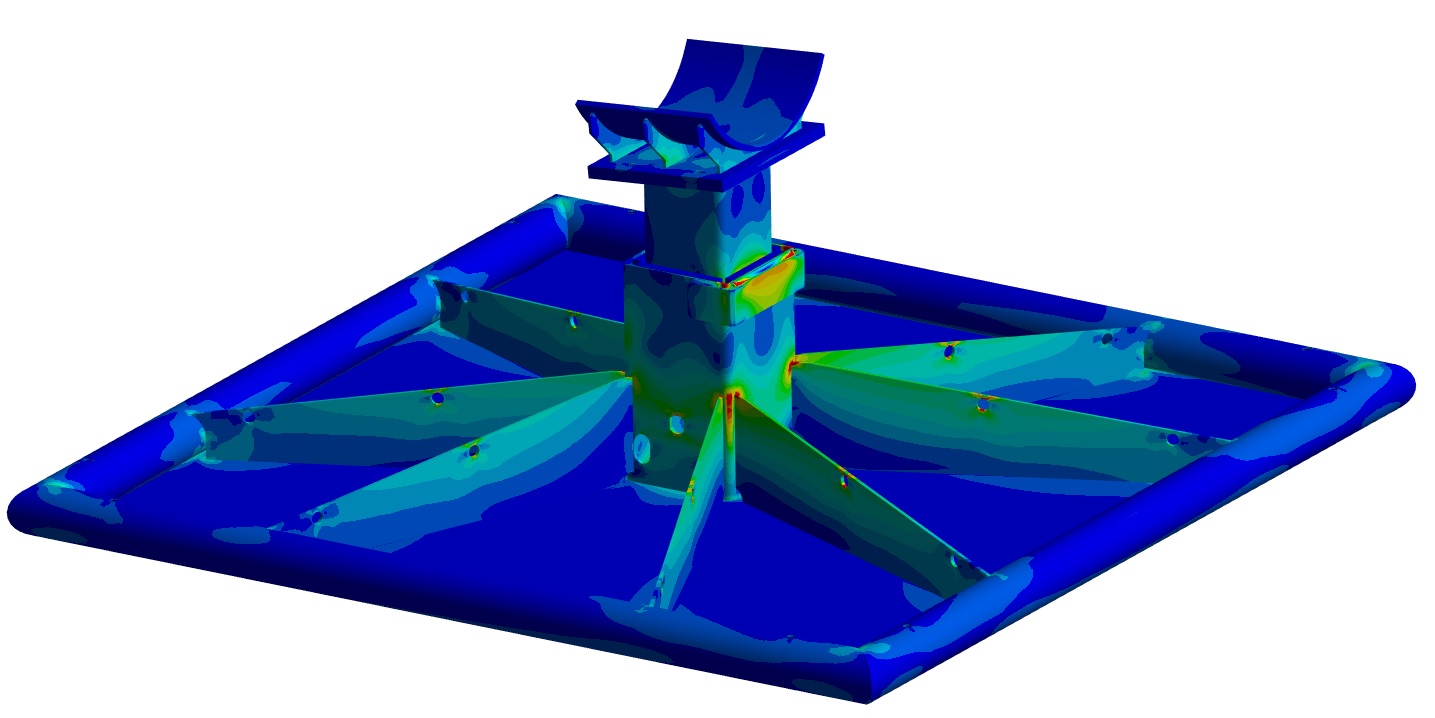

- FEA analysis and design report
- Project documentation work
Telescopic J-tube Support Frame footprint
3200×3200 mm
Wet weight
approx. 1440 kg
Supporting capacity
25 Te
Radius of saddle (for J-tube)
R350 mm
Max. stroke of saddle
360 mm
ROV Interface
ISO 13628-8 Cl.4 Torque bucket (fit for Class 4 TT)
